Grey Color Heavy-Duty Protection Automatic Barrier Gate Residential Parking 3M-6M

Grey Color Heavy-Duty Protection Automatic Barrier Gate Residential Parking 3M-6M

Nom De La Marque: KOMAI
Numéro De Modèle: ST-102
Quantité Minimale De Commande: 1 PIÈCES
Prix: negotiable
Conditions De Paiement: T/T, Western Union, espèces
Capacité à Fournir: 5000 pièces/mois
Informations détaillées
Lieu d'origine:
CHINE
Certification:
ISO, Rohs, CE, FCC
Nom du produit:
Porte de barrière de virage
Couleur:
Gris/doré ou adapté aux besoins du client
Longueur de flèche:
3-6m
Type de portail:
Barrières de péage
Matériel:
Alliage d'aluminium
Position:
Clôture de véhicule
Détails d'emballage:
paquet d'exportation standard
Capacité d'approvisionnement:
5000 pièces/mois
Mettre en évidence:

grey heavy-duty automatic barrier gate

,

residential parking boom barrier gate

,

3M-6M automatic boom barrier gate

Description du produit

Grey Color Heavy-Duty Protection Automatic Barrier Gate Residential Parking 3M-6M



Introduction:

Barrier Gate System , also known as a boom barrier, is a bar, or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near vertical position. Boom gates are often paired either end to end, or offset appropriately to block traffic in both directions.



Features:

1) 120W three-phase electric motor: low working temperature ,100% duty circle;
2) Use 2 springs: working more stable;
3) Integrative machine core: all part is made by mold;
4) Anti-crash function: barrier arm can bounce back if arm hits obstacles;
5) Speed is adjustable: from 0.9s to 2s,and from 1.5s to 3s
6) Motor self-heating function: motor can heat itself if temperature is lower than -10℃



Specifications:

Max LED boom & speed 0.9s-2s 3.5m
1.5s-3s 4.5m
Opening and closing times 0.9~3s
Voltage 220V/110V ±10%
Frequency 50HZ/60HZ
Motor power consumption 120W
Motor consumption 5 million times
Working temperature -30°to 80°℃
Housing dimension 344(Width)*283(Depth)*1015(Height)mm
Weight not including barrier boom 50kgs
Drive Three-phase electric motor
Maximum Remote Control Distance ≤40m



Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.



Our Service:

1. Any Inquiry will be repelled within 24 hours.
2. OEM available:
1) Slik print logo on the goods
2) Customized goods firmware
3) Customized Color box
4) Any your idea on camera we can help you to design and put it into production
5) The MOQ is 100 units for OEM



FAQ:

1) Can you install using loop detector or pressure sensor on it?

    Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.

2) How about the guarantee and after sale service?

    We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.

3) How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.

4) How about the payment terms?

    TT,western union,our company already joined the trade assurance,it will highly protect your order security.

5) How do you send the products to me,how long?

    As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose

    your own shipping forwarder. it normally takes 7-60 days depend on different countries.

6) What is the package of the barrier gate?

    Inside with a carton package.Then outside,there are wooden crate package.

7) Can you do OEM service?

    We offer below OEM services:

1) We can make custom design turnstile,or you tell us your requirements,we can make a design for you.

2) Can print your logo on turnstiles, can customize the retail box packing and other things.
8) Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box

packing and other things.

4. We have very experienced engineers ,can help you better use it.

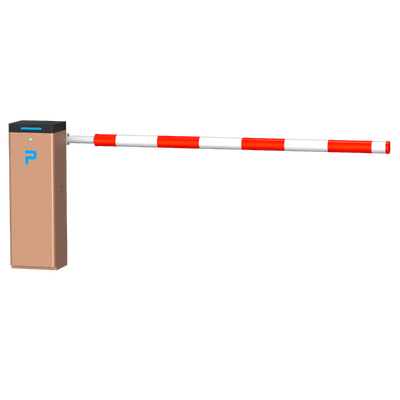

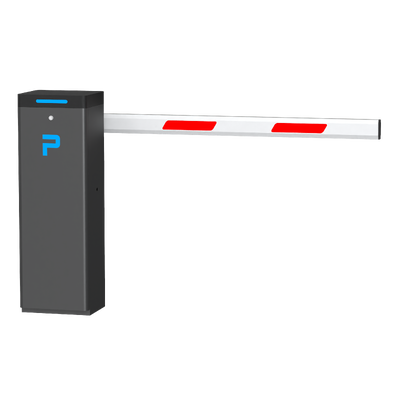

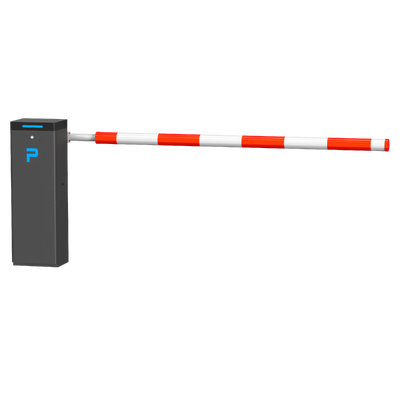

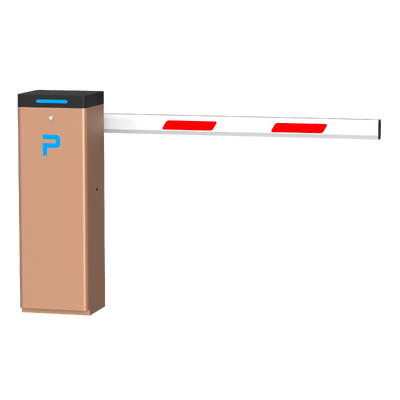

Grey Color Heavy-Duty Protection Automatic Barrier Gate Residential Parking 3M-6M 0
